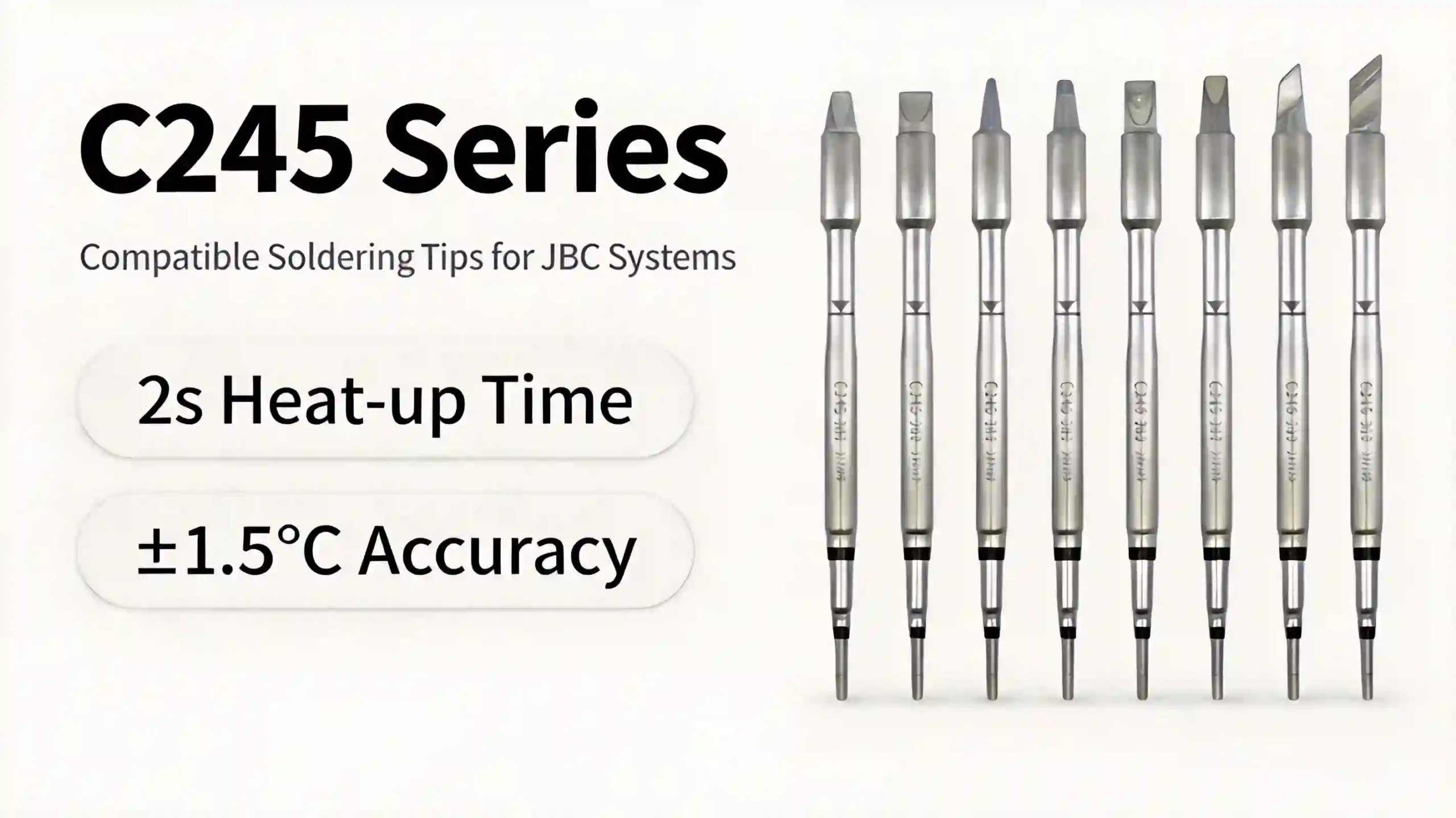

JBC C245 Compatible Soldering Tips – Cartridge Replacement for CD/CDE/DME Stations
Series: C245 Cartridge Range
Tip Type: Conical, Conical Bent, Chisel, Chisel Bent, Bevel, Bevel Bent, Spoon, Barrel, Knife, Round Connector, Drag Soldering, Special Purpose, C245E Extended Life
Available Models: 00+ models including C245-001, C245-030, C245-032, C245-036, C245-906, C245-905, C245-945, C245-965, C245-159E, and more
Compatible With: JBC CD, CDE, CDEB, DI, DDE, DME Soldering Stations; T245-A/B/C/PA/NA Handles; Sugon A9/A9 Pro, Aifen A9
Material: Oxygen-Free Copper Core + PTFE Coating
Application: Precision electronics assembly, SMD rework, fine-pitch IC soldering, connector soldering, through-hole soldering, PCB repair
MOQ: Flexible (contact for pricing)
Customization: Available (OEM/ODM)
C245 Compatible Soldering Tips for JBC Systems
Cartridge Replacement Tips for JBC C245 Series Soldering Stations
Zhongzhen manufactures compatible C245 soldering tips as a direct drop-in replacement f
Description Warranty Info
Description
C245 Compatible Soldering Tips for JBC Systems
Cartridge Replacement Tips for JBC C245 Series Soldering Stations
Zhongzhen manufactures compatible C245 soldering tips as a direct drop-in replacement for JBC C245-series soldering stations. With over 100 models available across 13 tip types, the C245 range covers virtually every soldering application — from ultra-fine precision work on 0201 components to heavy-duty through-hole and drag soldering. Every tip is manufactured in-house with strict quality control, delivering comparable performance to OEM products at significant cost savings for your production line.
Explore C245 Tip Types
Jump to a specific tip category:
- C245 Conical Tips — Ultra-fine to large diameter precision tips
- C245 Conical Bent Tips — Angled access for tight spaces
- C245 Chisel Tips — Standard and wide chisel for general soldering
- C245 Chisel Bent Tips — Angled chisel for controlled soldering
- C245 Bevel Tips — Flat bevel for efficient heat transfer
- C245 Bevel Bent Tips — Angled bevel and rotary options
- C245 Spoon Tips — SMD component removal and rework
- C245 Barrel Tips — Pin and socket soldering
- C245 Knife Tips — Drag soldering and fine-pitch ICs
- C245 Round Connector Tips — Connector pin soldering
- C245 Drag Soldering Tips — Fine-pitch IC drag soldering
- C245 Special Purpose Tips — PLCC socket, solder pot, heat staking
- C245E Extended Life Series — Enhanced durability for production lines
Download Full C245 Catalog (PDF)
Popular C245 Models
Most frequently ordered C245 compatible tips for industrial production lines:
| Model | Type | Application |
|---|---|---|
| C245-001 | Conical Ø0.6mm | General precision soldering |
| C245-030 | Conical Ø0.3mm | Ultra-fine SMD (0201/0402) |
| C245-904 | Conical Bent Ø1.0mm | Angled precision soldering |
| C245-906 | Chisel | General production soldering |
| C245-946 | Chisel Bent | Angled chisel soldering |
| C245-905 | Bevel Ø1.5mm | Medium solder joints |
| C245-945 | Knife 2.2mm | Drag soldering |
| C245-965 | Spoon 1.9mm | SMD rework & removal |
Can’t find your model? Browse all 100+ models below or contact us for custom requirements.
Complete C245 Tip Types & Available Models
1. Conical Tips
| Model | Tip Diameter | Special | Application |
|---|---|---|---|
| C245-030 | Ø0.3mm | — | Ultra-fine SMD (0201/0402 components) |
| C245-032 | Ø0.4mm | — | Fine-pitch SMD rework |
| C245-036 | Ø0.5mm | S1 | Precision electronics |
| C245-930 | Ø0.5mm | S2 | Precision electronics |
| C245-001 | Ø0.6mm | — | General precision soldering |
| C245-201 | Ø0.6mm | L | Deep-reach soldering |
| C245-937 | Ø0.6mm | HT | High-temp lead-free |
| C245-957 | Ø0.8mm | — | General purpose |
| C245-903 | Ø1.0mm | S1 | General soldering |
| C245-803 | Ø1.0mm | L | Deep-reach soldering |
| C245-041 | Ø1.0mm | S2 | General soldering |
| C245-403 | Ø1.0mm | HT | High-temp lead-free |
| C245-943 | Ø1.7mm | — | Through-hole, connectors |
| C245-933 | Ø2.2mm | — | Heavy-duty, ground pads |
| C245-107 | Ø3.0mm | HT | Large-area, high-temp |
2. Conical Bent Tips
| Model | Tip Diameter | Special | Application |
|---|---|---|---|
| C245-034 | Ø0.4mm | S1 | Fine-pitch angled access |
| C245-234 | Ø0.4mm | S1 L | Long angled precision |
| C245-029 | Ø0.4mm | S2 | Angled SMD rework |
| C245-126 | Ø0.4mm | S3 | Angled micro soldering |
| C245-929 | Ø0.6mm | — | General angled soldering |
| C245-935 | Ø0.8mm | — | Medium angled access |
| C245-904 | Ø1.0mm | — | Most popular bent conical |
| C245-804 | Ø1.0mm | L | Deep-reach angled |
| C245-259 | Ø1.5mm | — | Large angled joints |
| C245-786 | — | — | Angled precision |
| C245-260 | — | — | Angled precision |
| C245-627 | — | — | Angled precision |
| C245-628 | — | — | Angled precision |
3. Chisel Tips
| Model | Special | Application |
|---|---|---|
| C245-731 | — | Standard chisel |
| C245-773 | — | Standard chisel |
| C245-742 | HT | High-temp chisel |
| C245-170 | — | Standard chisel |
| C245-774 | — | Wide chisel |
| C245-906 | — | Most popular chisel |
| C245-406 | HT | High-temp chisel |
| C245-768 | — | Standard chisel |
| C245-171 | — | Standard chisel |
| C245-944 | — | Wide chisel |
| C245-907 | — | Standard chisel |
| C245-407 | HT | High-temp chisel |
| C245-770 | — | Wide chisel |
| C245-017 | — | Classic chisel |
| C245-018 | — | Classic chisel |
| C245-019 | — | Classic chisel |
4. Chisel Bent Tips
| Model | Special | Application |
|---|---|---|
| C245-962 | — | Angled chisel |
| C245-862 | — | Angled chisel |
| C245-963 | — | Angled chisel |
| C245-863 | — | Angled chisel |
| C245-946 | — | Most popular bent chisel |
| C245-846 | — | Angled chisel |
| C245-732 | — | Angled chisel |
| C245-761 | — | Angled chisel |
5. Bevel Tips
| Model | Tip Diameter | Special | Application |
|---|---|---|---|
| C245-747 | Ø0.6mm | — | Fine bevel soldering |
| C245-710 | Ø1.2mm | — | Medium bevel soldering |
| C245-064 | Ø1.3mm | — | Medium bevel soldering |
| C245-905 | Ø1.5mm | — | Most popular bevel |
| C245-405 | Ø1.5mm | HT | High-temp bevel |
| C245-102 | Ø2.0mm | — | Large bevel soldering |
6. Bevel Bent Tips
| Model | Special | Application |
|---|---|---|
| C245-748 | — | Angled bevel soldering |
| C245-749 | Rotary | Rotary angled bevel |
7. Spoon Tips
| Model | Width | Application |
|---|---|---|
| C245-965 | 1.9mm | SMD component removal & rework |
| C245-067 | 2.3mm (mini) | Small SMD rework |
| C245-931 | 2.7mm | Medium SMD rework |
| C245-938 | 3.8mm (mini) | Large SMD rework |
8. Barrel Tips
| Model | Inner Diameter | Application |
|---|---|---|
| C245-790 | Ø0.8mm | Small pin/socket soldering |
| C245-785 | Ø1.5mm | Medium pin/socket soldering |
| C245-763 | Ø2.5mm | Large pin/socket soldering |
| C245-760 | Ø3.5mm | Heavy-duty pin soldering |
9. Knife Tips
| Model | Width | Application |
|---|---|---|
| C245-784 | — | Drag soldering, scraping |
| C245-945 | 2.2mm | Most popular knife tip |
| C245-845 | 2.2mm (L) | Long knife, drag soldering |
10. Round Connector Tips
| Model | Size | Application |
|---|---|---|
| C245-122 | 1.5×0.5mm | Connector pin soldering |
| C245-762 | 6.7×1.8mm | Large connector soldering |
11. Drag Soldering Tips
| Model | Application |
|---|---|
| C245-754 | Fine-pitch IC drag soldering |
| C245-701 | Drag soldering |
| C245-751 | Drag soldering |
| C245-796 | Drag soldering |
12. Special Purpose Tips
| Model | Type | Application |
|---|---|---|
| C245-071 | PLCC Socket | PLCC IC rework |
| C245-248 | PLCC Socket | PLCC IC rework |
| C245-247 | PLCC Socket | PLCC IC rework |
| C245-SP01 | Solder Pot | Solder pot/bath tip |
| C245-163 | Heat Staking | Heat staking (Chrome coated) |
| C245-688 | Heat Staking | Heat staking (Chrome coated) |
| C245-143 | Heat Staking | Heat staking (Chrome coated) |
13. C245E Extended Life Series
| Model | Based Type | Feature |
|---|---|---|
| C245-736E | Conical | Extended life conical tip |
| C245-909E | Conical Bent | Extended life bent conical |
| C245-629E | Conical Bent | Extended life bent conical |
| C245-159E | Chisel | Extended life chisel |
| C245-158E | Chisel | Extended life chisel |
| C245-160E | Chisel | Extended life chisel |
| C245-155E | Chisel | Extended life chisel |
| C245-735E | Chisel | Extended life chisel |
| C245-161E | Chisel | Extended life chisel |
| C245-070E | Chisel | Extended life chisel |
| C245-968E | Chisel | Extended life chisel |
| C245-172E | Bevel | Extended life bevel |
| C245-175E | Bevel | Extended life bevel |
| C245-176E | Bevel | Extended life bevel |
| C245-156E | Bevel | Extended life bevel |
| C245-354E | Bevel | Extended life bevel |
| C245-952E | Bevel | Extended life bevel |
| C245-157E | Knife | Extended life knife |
Technical Specifications
</
| Parameter | Specification |
|---|---|
| Overall Length | 110mm |
| Weight | ~10g per tip |
| Core Material | High-purity oxygen-free copper |
